(1). Docker Swarm是什么
Docker Swarm是Docker的集群管理工具,其主要作用是把若干台Docker主机抽象为一个整体,并且通过一个入口统一管理这些Docker主机上的各种Docker资源.
Docker Swarm优点:去中心化,声明式服务模型,可伸缩服务规模,覆盖网络(Overlay),服务发现,负载均衡.
说大白话一点:Docker Swarm类似于K8S,用于管理所有的Docker容器(弹性伸缩).

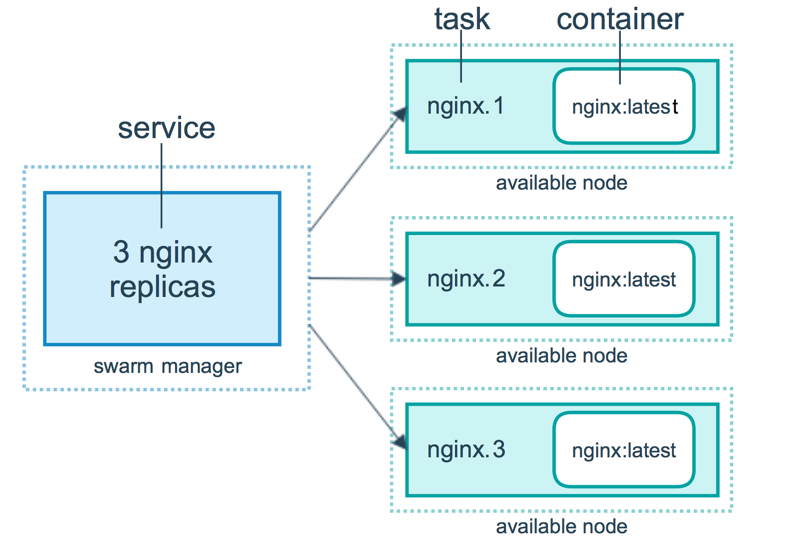

(2). Docker Swarm架构
Docker Swarm集群由管理节点(manager)和工作节点(work node)构成.
- swarm mananger: 负责整个集群的管理工作包括集群配置、服务管理等所有跟集群有关的工作.
- work node: 即图中的 available node,主要负责运行相应的服务来执行任务(task).
(3). 机器准备
| 机器名称 | IP | 角色 |
|---|---|---|
| erp-100 | 10.211.55.100 | manager |
| erp-101 | 10.211.55.101 | worker |
| erp-102 | 10.211.55.102 | worker |
(4). 准备工作
# 以下步骤,三台机器都要执行.
# 1. 禁用防火墙
# 如果开启防火墙,则需要在所有节点的防火墙上依次放行2377/tcp（管理端口）、7946/udp（节点间通信端口）、4789/udp（overlay 网络端口）端口.
> systemctl disable firewalld.service
> systemctl stop firewalld.service
# 2. 配置hosts
> cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
10.211.55.100 erp-100 erp-100
10.211.55.101 erp-101 erp-101
10.211.55.102 erp-102 erp-102
# 3. 安装docker
> yum -y install docker
> systemctl enable docker.service
> systemctl restart docker
# 4. 查看下宿主机的网络信息
> ifconfig
docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500
inet 172.17.0.1 netmask 255.255.0.0 broadcast 0.0.0.0
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.211.55.100 netmask 255.255.255.0 broadcast 10.211.55.255
# ***********************************************************************
# 5. 查看下宿主机的路由信息
# ***********************************************************************
> route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 10.211.55.1 0.0.0.0 UG 100 0 0 eth0
10.211.55.0 0.0.0.0 255.255.255.0 U 100 0 0 eth0
192.168.122.0 0.0.0.0 255.255.255.0 U 0 0 0 virbr0
(5). manager节点创建Docker Swarm集群
# ***********************************************************************
# 1. 初始化docker swarm
# ***********************************************************************
[root@erp-100 ~]# docker swarm init --advertise-addr 10.211.55.100
# Docker Swarm已经初始化,当前的节点为:manager
Swarm initialized: current node (ykctjoqvzm431tszes4ds50cz) is now a manager.
# 添加:worker节点到当前swarm,请在work节点上运行如下命令.
To add a worker to this swarm, run the following command:
docker swarm join \
--token SWMTKN-1-0in6fxnuvx1ksv6plc023b4elanx2f1wy3eiuzc43rmhtil0ke-1l5ta203lkpawqxyj0d1jprya \
10.211.55.100:2377
# 添加manager节点到当前swarm,请在work节点上运行如下命令.
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.
# ***********************************************************************
# 2. 查看worker join命令.
# ***********************************************************************
# [root@erp-100 ~]# docker swarm join-token worker
# To add a worker to this swarm, run the following command:
# docker swarm join \
# --token SWMTKN-1-0in6fxnuvx1ksv6plc023b4elanx2f1wy3eiuzc43rmhtil0ke-1l5ta203lkpawqxyj0d1jprya \
# 10.211.55.100:2377
# ***********************************************************************
# 3. 查看manager join命令.
# ***********************************************************************
# [root@erp-100 ~]# docker swarm join-token manager
# To add a manager to this swarm, run the following command:
# docker swarm join \
# --token SWMTKN-1-0in6fxnuvx1ksv6plc023b4elanx2f1wy3eiuzc43rmhtil0ke-26v76oarezghwj31tczg3isji \
# 10.211.55.100:2377
# ***********************************************************************
# 4. 查看node信息
# ***********************************************************************
[root@erp-100 ~]# docker node ls
ID HOSTNAME STATUS AVAILABILITY MANAGER STATUS
ykctjoqvzm431tszes4ds50cz * erp-100 Ready Active Leader
(6). worker节点,加入Docker Swarm集群
# 101节点(work),加入swarm集群
[root@erp-101 ~]# docker swarm join \
> --token SWMTKN-1-0in6fxnuvx1ksv6plc023b4elanx2f1wy3eiuzc43rmhtil0ke-1l5ta203lkpawqxyj0d1jprya \
> 10.211.55.100:2377
This node joined a swarm as a worker.
# 102节点(work),加入swarm集群
[root@erp-102 ~]# docker swarm join \
> --token SWMTKN-1-0in6fxnuvx1ksv6plc023b4elanx2f1wy3eiuzc43rmhtil0ke-1l5ta203lkpawqxyj0d1jprya \
> 10.211.55.100:2377
This node joined a swarm as a worker.
(7). 查看swarm集群状态
# 1. 查看集群信息
[root@erp-100 ~]# docker node ls
ID HOSTNAME STATUS AVAILABILITY MANAGER STATUS
lv3aruz9u70v7rbs5zgotkeyg erp-102 Ready Active
ooydlst3kukvy0ysq75johokh erp-101 Ready Active
ykctjoqvzm431tszes4ds50cz * erp-100 Ready Active Leader
# 2. 查看docker创建的网络(docker_gwbridge/ingress)
[root@erp-100 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
1a7c4e2a3138 bridge bridge local
43ecb3f9c1b2 docker_gwbridge bridge local
ea0745ad920e host host local
wd84uip49n0d ingress overlay swarm
(8). 创建service
# 1. 创建service时,需要nginx镜像,防止镜像下载过慢,提前拉取镜.
[root@erp-102 ~]# docker pull nginx
[root@erp-102 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
docker.io/nginx latest 08b152afcfae 44 hours ago 133 MB
# 2. 查看docker网络信息
[root@erp-100 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
5f4e36927e4a bridge bridge local
43ecb3f9c1b2 docker_gwbridge bridge local
ea0745ad920e host host local
wd84uip49n0d ingress overlay swarm
# 3. 查看网络ingress信息
[root@erp-100 ~]# docker network inspect ingress
"Containers": {
"ingress-sbox": {
"Name": "ingress-endpoint",
"EndpointID": "cd007a4a2d5ace0cdfca857d66d5b3b6a517e2156e3f167718a80a2f2bb9c7bd",
"MacAddress": "02:42:0a:ff:00:03",
"IPv4Address": "10.255.0.3/16",
"IPv6Address": ""
}
}
# 4. 创建overlay网络
# 在创建service时,如果你不指定,则,网络是:ingress
# [root@erp-100 ~]# docker network create --driver overlay --opt encrypted --subnet 10.10.10.0/24 nginx_network
# w09ts43g3607rdl68thy3aw00
# 5.查看网络状态
[root@erp-100 ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
5f4e36927e4a bridge bridge local
43ecb3f9c1b2 docker_gwbridge bridge local
ea0745ad920e host host local
wd84uip49n0d ingress overlay swarm
# w09ts43g3607 nginx_network overlay swarm
# 6. 在master节点上执行如下命令来创建名为mynginx的service,让其有2份nginx容器副本分配到集群中去,并指定自己创建的overlay网络(nginx_network)
# [root@erp-100 ~]# docker service create --replicas 2 --network nginx_network -p 8080:80 --name mynginx nginx
# 以下是不指定自定义的overlay网络
[root@erp-100 ~]# docker service create --replicas 2 -p 8080:80 --name mynginx nginx
tu9oyus6c5ma58mk9zih0agwf
# 7. 查看所有的service.
[root@erp-100 ~]# docker service ls
ID NAME MODE REPLICAS IMAGE
wkko7kvn6fll mynginx replicated 2/2 nginx:latest
# 8. 查看service(mynginx),运行状态.
[root@erp-100 ~]# docker service ps mynginx
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
hqn9x54cthro mynginx.1 nginx:latest erp-101 Running Running 41 seconds ago
7cytp3g6sfdx mynginx.2 nginx:latest erp-100 Running Running 41 seconds ago
# 9. 删除servie
# [root@erp-100 ~]# docker service rm mynginx
# mynginx
(9). 测试访问service
# ***********************************************************
# 我有三台宿主机,但是,只创建了两个容器,尝试访问三台宿主机的8080端口,看是否都能正确返回内容
# 从下面的结论来看,只要创建service,就会在所有的宿主机上创建相应的port,并监听.
# ***********************************************************
# 1. 访问:10.211.55.100
lixin-macbook:~ lixin$ curl -vvv http://10.211.55.100:8080
curl: (3) URL using bad/illegal format or missing URL
* Trying 10.211.55.100...
* TCP_NODELAY set
* Connected to 10.211.55.100 (10.211.55.100) port 8080 (#0)
> GET / HTTP/1.1
> Host: 10.211.55.100:8080
> User-Agent: curl/7.64.1
> Accept: */*
# 2. 访问:10.211.55.101
lixin-macbook:~ lixin$ curl -vvv http:// 10.211.55.101:8080
curl: (3) URL using bad/illegal format or missing URL
* Trying 10.211.55.101...
* TCP_NODELAY set
* Connected to 10.211.55.101 (10.211.55.101) port 8080 (#0)
> GET / HTTP/1.1
> Host: 10.211.55.101:8080
> User-Agent: curl/7.64.1
> Accept: */*
# 3. 访问:10.211.55.102
lixin-macbook:~ lixin$ curl -vvv http:// 10.211.55.102:8080
curl: (3) URL using bad/illegal format or missing URL
* Trying 10.211.55.102...
* TCP_NODELAY set
* Connected to 10.211.55.102 (10.211.55.102) port 8080 (#0)
> GET / HTTP/1.1
> Host: 10.211.55.102:8080
> User-Agent: curl/7.64.1
> Accept: */*
(10). 动态伸缩service
# 1. 查看service(mynginx)状态
[root@erp-100 ~]# docker service ps mynginx
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
hqn9x54cthro mynginx.1 nginx:latest erp-101 Running Running 8 minutes ago
7cytp3g6sfdx mynginx.2 nginx:latest erp-100 Running Running 8 minutes ago
# 2. 动态伸缩(scale)
[root@erp-100 ~]# docker service scale mynginx=4
mynginx scaled to 4
# 3. 再次查看service(mynginx),变成了4个
[root@erp-100 ~]# docker service ps mynginx
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
hqn9x54cthro mynginx.1 nginx:latest erp-101 Running Running 12 minutes ago
7cytp3g6sfdx mynginx.2 nginx:latest erp-100 Running Running 12 minutes ago
nnqpqe8uy550 mynginx.3 nginx:latest erp-102 Running Running 3 minutes ago
s68z4bdz114q mynginx.4 nginx:latest erp-102 Running Running 3 minutes ago
# 4. 动态伸缩(update)
[root@erp-100 ~]# docker service update --replicas 3 mynginx
mynginx
# 5. 再次查看service(mynginx)信息,变成了3个
[root@erp-100 ~]# docker service ps mynginx
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
hqn9x54cthro mynginx.1 nginx:latest erp-101 Running Running 13 minutes ago
7cytp3g6sfdx mynginx.2 nginx:latest erp-100 Running Running 13 minutes ago
s68z4bdz114q mynginx.4 nginx:latest erp-102 Running Running 4 minutes ago
(11). 查看网络状态
# 1. 查看宿主机上(erp-100)的网络信息,发现有一个容器,IP地址为:10.10.10.4
[root@erp-100 ~]# docker network inspect nginx_network
"Containers": {
"1a7ec863ff9408640f9b252e2f410b6b936d0b3ad5700343de79e218c54ed502": {
"Name": "mynginx.2.nfieat3926njm8b7tfocv53tj",
"EndpointID": "c4bce32fda04b52aff9f01327620b29ea9cbef2760954a3bde3cb0d5a138fb0e",
"MacAddress": "02:42:0a:0a:0a:04",
"IPv4Address": "10.10.10.4/24",
"IPv6Address": ""
}
}
# 2. 查看宿主机上(erp-101)的网络信息,发现有一个容器,IP地址为:10.10.10.2
[root@erp-101 ~]# docker network inspect nginx_network
"Containers": {
"58d86999e05386512340be0f45cc3366037833752d367f3f15325bf574ba130b": {
"Name": "mynginx.1.jsgzk82531bm1mx3uhup6v0bb",
"EndpointID": "edddb7e9e9a50f957536e08e70cda5ebcc909287f1572762d7eae9de5f8cb9d7",
"MacAddress": "02:42:0a:0a:0a:03",
"IPv4Address": "10.10.10.3/24",
"IPv6Address": ""
}
}
# 3. 查看宿主机上(erp-102)的网络信息,发现有一个容器,IP地址为:10.10.10.5
[root@erp-102 ~]# docker network inspect nginx_network
"Containers": {
"d94b9823dcbad04c6b6a22a507dd2b283adb2c32f648cc2964efdba2274bbe75": {
"Name": "mynginx.3.v6p1q864b6pgj00xfxoof7lfx",
"EndpointID": "4b78c37406cdac61655abcaa1305d2c59f63bb74c4abb8a3f00438ba9612bd74",
"MacAddress": "02:42:0a:0a:0a:05",
"IPv4Address": "10.10.10.5/24",
"IPv6Address": ""
}
}
(12). 测试进入容器内部互相ping
# 1. 查看当前宿主机上有哪些活动的容器
[root@erp-100 ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
1a7ec863ff94 nginx@sha256:8f335768880da6baf72b70c701002b45f4932acae8d574dedfddaf967fc3ac90 "/docker-entrypoin..." 9 minutes ago Up 9 minutes 80/tcp mynginx.2.nfieat3926njm8b7tfocv53tj
# 2. 进入容器内部,查看IP地址信息(能够看到这个容器的ip[10.10.10.4])
[root@erp-100 ~]# docker exec -it 1a7ec863ff94 /bin/bash
root@1a7ec863ff94:/# cat /etc/hosts
127.0.0.1 localhost
::1 localhost ip6-localhost ip6-loopback
10.10.10.4 1a7ec863ff94
# 3. 在容器内部,测试访问,其它容器内部的nginx
# 10.10.10.2
root@1a7ec863ff94:/# curl -vvv http://10.10.10.2
* Expire in 0 ms for 6 (transfer 0x562e8cf98fb0)
* Trying 10.10.10.2...
* TCP_NODELAY set
* Expire in 200 ms for 4 (transfer 0x562e8cf98fb0)
* Connected to 10.10.10.2 (10.10.10.2) port 80 (#0)
> GET / HTTP/1.1
> Host: 10.10.10.2
# 10.10.10.5
root@1a7ec863ff94:/# curl -vvv http://10.10.10.5
* Expire in 0 ms for 6 (transfer 0x55e707324fb0)
* Trying 10.10.10.5...
* TCP_NODELAY set
* Expire in 200 ms for 4 (transfer 0x55e707324fb0)
* Connected to 10.10.10.5 (10.10.10.5) port 80 (#0)
> GET / HTTP/1.1
> Host: 10.10.10.5
> User-Agent: curl/7.64.0
> Accept: */*
(13). 覆盖网络是如何通信的呢?
# *******************************************************************************************
# 防止干扰,先删除前面的创建的网络或者service
# *******************************************************************************************
# 外部访问容器内部的路线: eth0 --> iptables --> docker_gwbridge --> ingress-sbox(iptables) --> container
# 容器到外部访问路径: container --> docker_gwbridge --> iptables --> eth0
# 1. 查看ingress网络信息(10.255.0.3)
[root@erp-100 ~]# docker network inspect ingress
"Containers": {
"ingress-sbox": {
"Name": "ingress-endpoint",
"EndpointID": "4292a6a9b353984c12bc14a98fe65da45094719c4cd1061dfec325298d431294",
"MacAddress": "02:42:0a:ff:00:03",
"IPv4Address": "10.255.0.3/16",
"IPv6Address": ""
}
}
# 2. 查看docker_gwbridge网络信息(172.18.0.2)
[root@erp-100 ~]# docker network inspect docker_gwbridge
"Containers": {
"ingress-sbox": {
"Name": "gateway_ingress-sbox",
"EndpointID": "0e216bca5698e6a3f354a51332851491bbf8ffbbeddc4781fb5c261a590c80a5",
"MacAddress": "02:42:ac:12:00:02",
"IPv4Address": "172.18.0.2/16",
"IPv6Address": ""
}
}
# 3. 查看docker隔离的网络命名空间
[root@erp-100 ~]# ls /var/run/docker/netns/
1-wd84uip49n
ingress_sbox
# *******************************************************************************************
# 4. 创建service(先删除前面创建的service)
[root@erp-100 ~]# docker service create --replicas 3 -p 8080:80 --name mynginx nginx
# *******************************************************************************************
# *******************************************************************************************
# 5. 查看ingress_sbox的命名空间下网络信息
# eth1@if12 : 与宿主机的docker_gwbridge(172.18.0.1)进行连接
# eth0@if10 : 与我们的docker创建的容器eth0(10.255.0.1/16)进行连接
# *******************************************************************************************
[root@erp-100 ~]# nsenter --net=/var/run/docker/netns/ingress_sbox ip a
9: eth0@if10: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default
link/ether 02:42:0a:ff:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 10.255.0.3/16 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::42:aff:feff:3/64 scope link
valid_lft forever preferred_lft forever
11: eth1@if12: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 1
inet 172.18.0.2/16 scope global eth1
valid_lft forever preferred_lft forever
inet6 fe80::42:acff:fe12:2/64 scope link
valid_lft forever preferred_lft forever
# *****************************************************************************
# 6. iptables查看路由信息
# curl http://172.18.0.2:8080
# *****************************************************************************
# 访问10.211.55.100:8080会转发到:172.18.0.2:8080
[root@erp-100 ~]# iptables -vnL -t nat
Chain DOCKER-INGRESS (2 references)
pkts bytes target prot opt in out source destination
0 0 DNAT tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:8080 to:172.18.0.2:8080
# *****************************************************************************
# 7. 查看:ingress_sbox的iptables信息
# ingress_sbox把通向10.255.0.0网段的路由,IPVS到:10.255.0.3的IP上
# *****************************************************************************
[root@erp-100 ~]# nsenter --net=/var/run/docker/netns/ingress_sbox iptables -nvL -t nat
Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
2 120 SNAT all -- * * 0.0.0.0/0 10.255.0.0/16 ipvs to:10.255.0.3
# 8. 再次,查看docker隔离的网络命名空间,多了一个(a60777f6a949)
[root@erp-100 ~]# ls /var/run/docker/netns/
1-wd84uip49n
a60777f6a949(*)
ingress_sbox
# *******************************************************************************
# 9. 查看a60777f6a949的网络信息
# *******************************************************************************
[root@erp-100 ~]# nsenter --net=/var/run/docker/netns/a60777f6a949 ip a
34: eth0@if35: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default
link/ether 02:42:0a:ff:00:08 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 10.255.0.8/16 scope global eth0
valid_lft forever preferred_lft forever
inet 10.255.0.2/32 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::42:aff:feff:8/64 scope link
valid_lft forever preferred_lft forever
36: eth1@if37: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
link/ether 02:42:ac:12:00:03 brd ff:ff:ff:ff:ff:ff link-netnsid 1
inet 172.18.0.3/16 scope global eth1
valid_lft forever preferred_lft forever
inet6 fe80::42:acff:fe12:3/64 scope link
valid_lft forever preferred_lft forever
(14). 总结
总体来说Docker Swarm相比K8S还是比较简单的,特别是,机器数量不多的情况下,用Swarm会比K8S更节省.
